Vertical Turning Lathes

Amera-Seiki's Vertical Turning Lathe (VT Series) was designed with the high output user in mind. Our turret style machines feature high torque drives for your toughest cuts, while our ram style machine provides a greater level of support to enhance accuracy and finish.

Massive castings and extra-wide way systems assure accurate and stable machining on all of our vertical turning lathes. Heavy duty transmissions, which are standard on larger models, allow stock removal at high spindle speeds.

Our feed system provides superior vibration absorption and chatter-free cutting, even under demanding conditions such as threading, grooving, interrupted cuts and heavy roughing. With chuck sizes ranging from 20 inches to 13 feet, Amera-Seiki has a Vertical Turning Lathe to process your workpiece.

View Specs Request a Quote

Amera-Seiki’s VTL Series vertical turning lathes:

We offer both Turret and Ram style machines!
We specialize in very large machines with table diameters up to 4 meters and max swing diameters up to 4.5 meters!
Cutting heights up to 2.5 meters!
Have a very heavy work piece? We have chucks that can handle up to 80,000 kg (88 us ton)!
Need full C-Axis with live tooling? We can do it! With up to a 50 HP live tooling!
Our high density castings are heavier with less webbing. This means less harmonics and less thermal variation!
We have a wide array of options like a 3-speed gearbox and even dual ram capability!!

“We have multiple machines by Amera-Seiki and have had them for many years. They have required very little maintenance and weâ€™ve experienced very little down-time, compared with other machine brands.”

- Mark Collett
Bloom Mfg.

VT Series Turret Style Specifications

Item	Description	Unit	VT-500T	VT-500TM	VT-650T	VT-650TM	VT-800T	VT-800TM	VT-1000T	VT-1000TM	VT-1100T	VT-1100TM	VT-1200T	VT-1200TM
Working Space	Max Swing Diameter	mm	720		750		850		1150		1350		1350
	Max Cutting Diameter	mm	550		650		800		1000		1100		1200
	Max Cutting Height	mm	450		700		800		800		800		800
Main Spindle	Dia. Of Spindle Bearing	mm	130TAC-A8		160TAC-A8		170TAC-A11		220TAC-A15		220		220
	Spindle Nose		A2-8		A2-11		A2-11		A2-15
	Max. Spindle Turning RPM	RPM	2500				2000		1500		1000		800	1000
Turret	Turret Type		100-8T	TBMA250	160-8T	TBMA250	160-8T		200-8T	TBMA320	200-8T	TBMR320	200-8T	TBMR320
	Tools	pcs	8	12	8	12	8	12	8	12	8	12	8	12
	Tool Size	mm	32ѱ50	25ѱ40	32ѱ50	32ѱ60	32ѱ50					32ѱ60	32ѱ50	32ѱ60
Axis Traveling and feedrate	X-Max Travel	mm	20-290		30-390		35-460		60-570		60-640
	Z-Max Travel	mm	450		650		850
	X-Rapid Feedrate	mm/min	15000						12000
	Z-Rapid Feedrate	mm/min	15000						12000
Power	Spindle Motor	kw	ɑ p30 15/18.5		ɑ p40 18.5/22				ɑ p40 37/45
	Live Tool Motor	kw	N/A	ɑ 8 7.5/1	N/A	ɑ 8 7.5/1	N/A	ɑ 8 7.5/1	N/A	ɑ 12 11/15	N/A	ɑ 12 11/15	N/A	ɑ 12 11/15
	X-Axial Servo Motor	kw	1.6		3				4		7
	Z-Axial Servo Motor	kw	3		4				7
	Oil Hydraulic Motor	kw	2.2
	Coolant Motor	kw	2.6
	Machine Bed Flushing Water	kw	0.75						0.75 + 0.75
	Chip Conveyor Motor	kw	0.2
Machine Layout	Machine Size	mm	2300x3400		3100x2440		3200x2680		3750x3250		3950x3500		4350x3550
	Machine Height	mm	2460		2900		3135		3550		3550		3750
	Machine Weight	kg	6900		8000		8700		13500		15400		16500
	Power Required	kva	35	40	40	50	40	50	60	70	60	70	60	70
	Control System		Fanuc 0iT-D
Standard Accessories	3-Jaw Hydraulic Chuck	inch	15 (18-21 avail)		15 (18-24 avail)		21 (24-32 avail)		32 (40 avail)				40
	Facing/Boring Tool Holder	pcs	3/3		3/3		3/3		3/3		3/3		3/3
	Outer/Inner Tool Turret	pcs		2/2		2/2		2/2		2/2		2/2		3/3
	Turret	pcs	ѱ 20, 25, 32, 40
	Hydraulic Unit
	Chip Conveyor
	Coolant System
	Disk Type Oil/Water Seperator		Included with all models
	Heat Transfer for Electric Cabinet
	Work Lamp & 3-Color Alarm Lamp
	Automatic Lubrication System
Optional Accessories	Spindle Motor Upgrade	kw	ɑ 40 37/45						ɑ 50 45/55 & ɑ 60 60
	Control System		Fanuc 32iT
	Manual Guide i
	High Pressure Flood Coolant
	2-Speed Gearbox
	Auto Door
	Electrical Cabinet A/C system
	Paper Filter		Available on all models
	Oil Mist Filter
	Caliper Unit Tools
	Power Stabilizer
	Robert Interference Device
	CE Mark

Download PDF Request a Quote

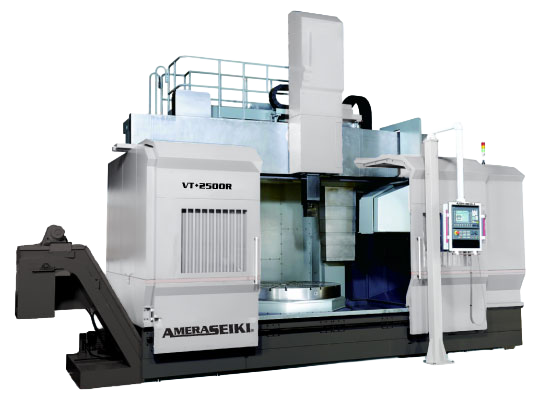

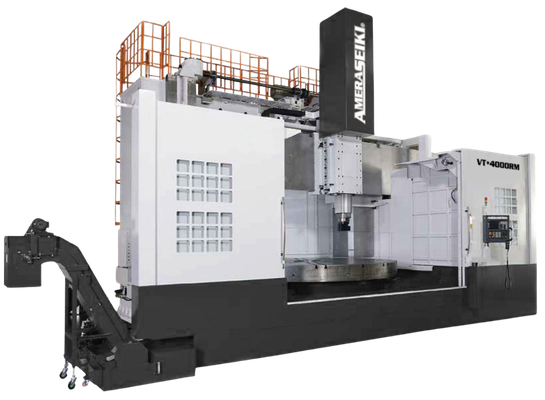

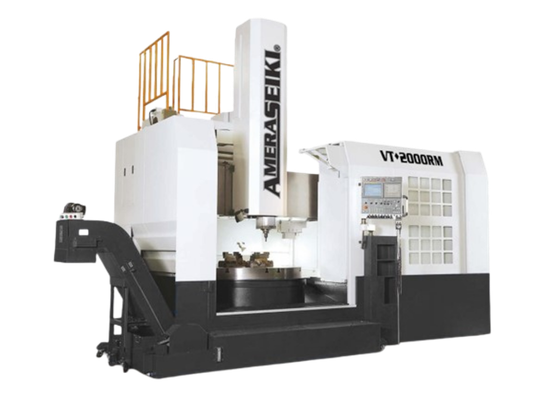

VT Series Ram Style Specifications

		Unit	VT-1250R	VT-1250RM	VT-1600R	VT-1600RM	VT-2000R	VT-2000RM	VT-2500R	VT-2500RM	VT-3200R	VT-3200RM	VT-4500R	VT-4500RM
Table Size	Table Diameter	mm	§1250		§1600		§2000		§2500		§3200		§4000
	Table Max. Swing Diameter	mm	§1350		§1700		§2100		§2800		§3400		§4500
	Table Max. Cutting Diameter	mm	§1250		§1600		§2000		§2500		§3200		§4000
	Table Max. Cutting Height	mm	1000						1600				2500
	Cross Rail Moving Height Cross Travels	mm	600 (4 steps)				1000 (6 Steps)		1250 (6 Steps)				1600 (5 steps)
	Table Weight Capacity/ Table Max. Load	kg	6000		12000		20000		30000		40000		80000
Spindle	Main Spindle Speed/ Table Speed	rpm	1-560		10-400		10-300		10-260		10-190		80
	Gear Box Speed Stages	step	3						3
	Live Spindle Speed/ Milling Spindle Speed	RPM		3000		3000		3000		3000		3000		3000
	Ram Size	mm²	220X220		254x254								305x305
ATC System	ATC Positions - Standard		12 (24 opt)	16 (24 Opt.)	12 (24 Opt.)				12 (60 Opt.)
	Tool Specification	mm	□25 □32 □40
	Tool Shank Size/Type	mm	220x220	200x200	300x300	300x300/BT-50	300x300	300x300/BT-50	300x300	300x300/BT-50	300x300	300x300/BT-50	305x240	305x240/BT-50
Feed Rate	Rapid Feed Rate (X-Axis)	m/min	12						10
	Rapid Feed Rate (Z-Axis)	m/min	12						10
	X-Axis Travel	mm	300-950		300-1200		300-1700		300-2100		500-2200		500-2700
	Z-Axis Travel	mm	800				1250				1600
	Cutting Feed Rate (X/Z)	mm/rev	0.01-1000						0.01-1000
Controller	Standard CNC Control (Fanuc)		Fanuc Oi-TD/31i-TB
	Siemens		840D
Motor Size	Main Spindle Motor	kw(HP)	ɑ 40 37 (45)				ɑ 50 37 (45)		ɑ 60 60 (80)				ɑ 120(120/160)
	Axes Motor	kw(HP)	ɑiF30 7 (10)						ɑiS30 5.5 (7.4)
	Live Spindle Motor/ Milling Spindle Motor	kw (HP)		ɑ 12Hvi (11/15)		ɑ iF229 (28/37)		ɑ iF229 (28/37)		ɑ iF229 (28/37)		ɑ iF229 (28/37)		ɑ iF229 (28/37)
